Parts have to fit. Assemblies have to build. Drawings have to tell the truth.

Mechanical design support for machines, fixtures, assemblies and precision components, with GD&T, tolerance definition, bills of material, exploded views, manufacturing drawings and reverse engineering.

GD&T / part definition

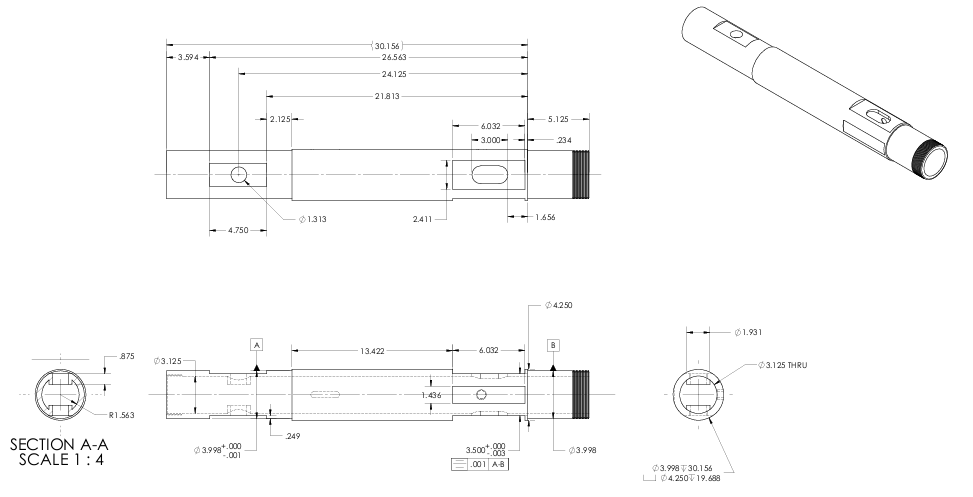

Machined shaft detail

Dimensioned component with section views and manufacturing definition.

BOM / assembly

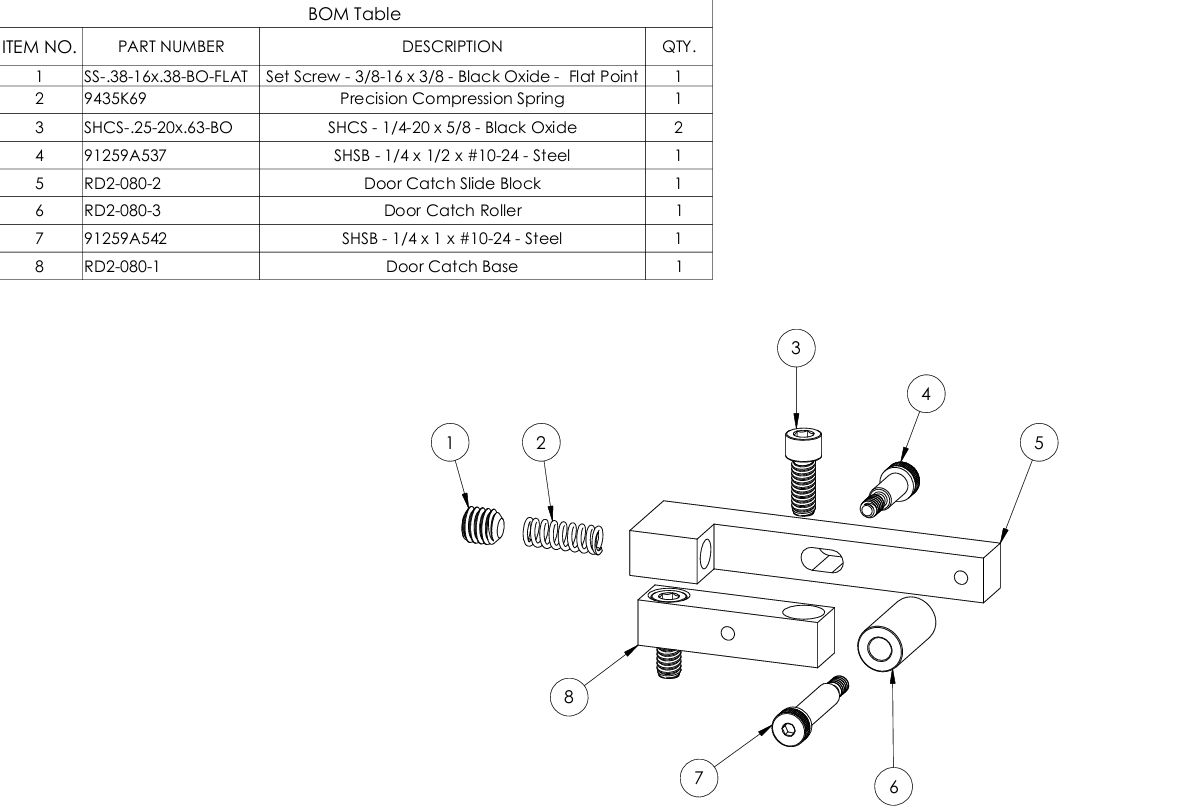

Door catch assembly

Exploded component relationship with itemized bill of material.

Machine design

Punch assembly

Detailed exploded assembly and part list for precision equipment.

Machine design

Equipment assembly

Multi-part machine breakdown with numbered component callouts.

Manufacturing documentation

GD&T and BOM discipline built into the drawing package.

GD&T symbols and tolerance definitionPart and assembly drawingsBills of material and item calloutsExploded views and assembly relationshipsMaterial, finish and manufacturing notesReverse engineering and existing-part captureSolidWorks / Inventor / AutoCAD Mechanical supportRevision-ready release documentation

Start with the files you have

Sketch, PDF, CAD model, redline or field photo.

Send the current information and the problem that needs to be solved. The first step is understanding what the final drawing package has to accomplish.
